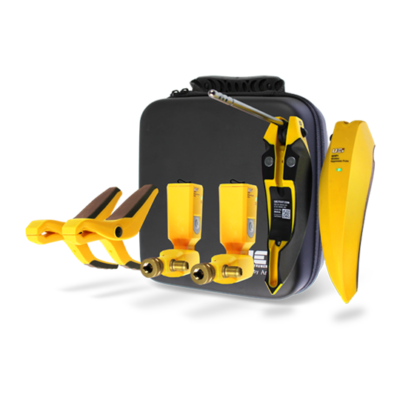

Smart Refrigerant Complete Kit

Features

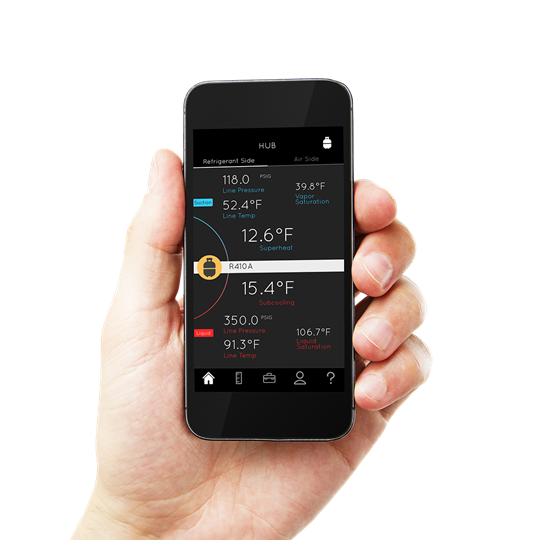

• In App system refrigerant charging calculations.
• In App temperature split and psychrometric calculations.

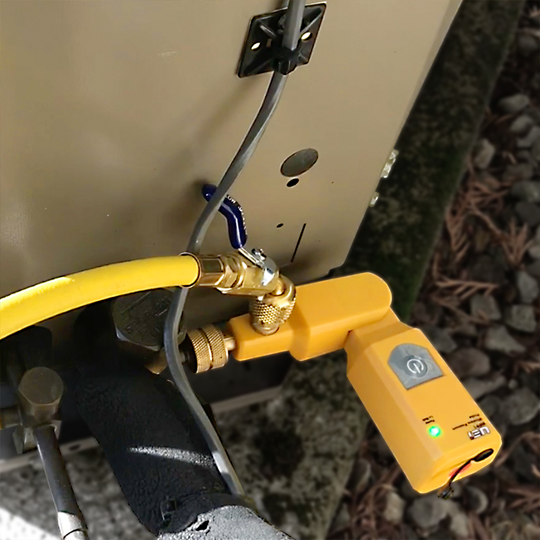

• 2 Wireless Pressure Probes (WPP1)
- Pass through refrigerant ports for easily adding or recovering refrigerant from the system without disconnecting probes.
- 180° rotation for easy use in tight spaces.
- Range 0 to 725 psig, Resolution 0.1 psi.
- Accuracy 0.5%FS, total 1%FS for 32° to 158°F (0° to 70°C).

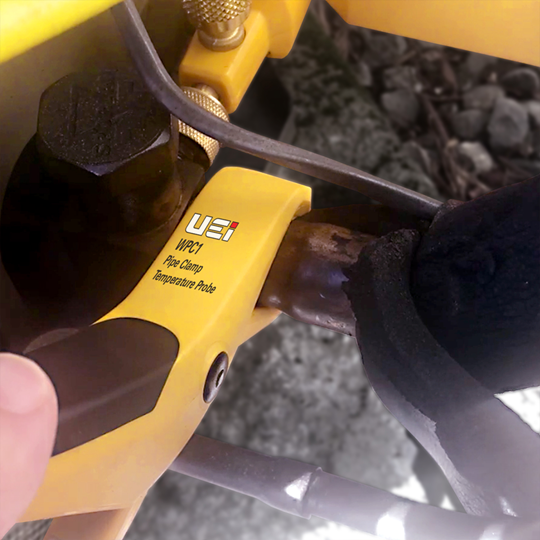

• 2 Temperature Pipe Clamps (WPC2)
- High accuracy thermistor provides better results than
thermocouples and doesn’t require field calibration.
- Range 32°F to 176°F (0°C to 80°C), Resolution 0.1°F.
- Response time 30 sec. Accuracy ±0.6?F (±0.3°C).
• 2 Wireless Hygrometer Probes (WHP1)
- Slimmest 1/4” hygrometer probe means smaller drill holes.
- Magnetic mount holds WHP1 to plenum for hands-free operation.
- Temp range: 32° to 140°F (0 to 60°C), Accuracy: ±0.5°F (±0.3°C).
- Relative Humidity: 0 to 100% (0.1% resolution, ±3% accuracy from 20 to 80% ±5% otherwise).
• Wireless distance of 150ft (50m) pending environment.
